Description
EV ATLAS is an essential tool for any industrial environment that requires thorough and effective cleaning. It saves time, effort and resources while ensuring that the environment is disinfected and free from harmful microorganisms.

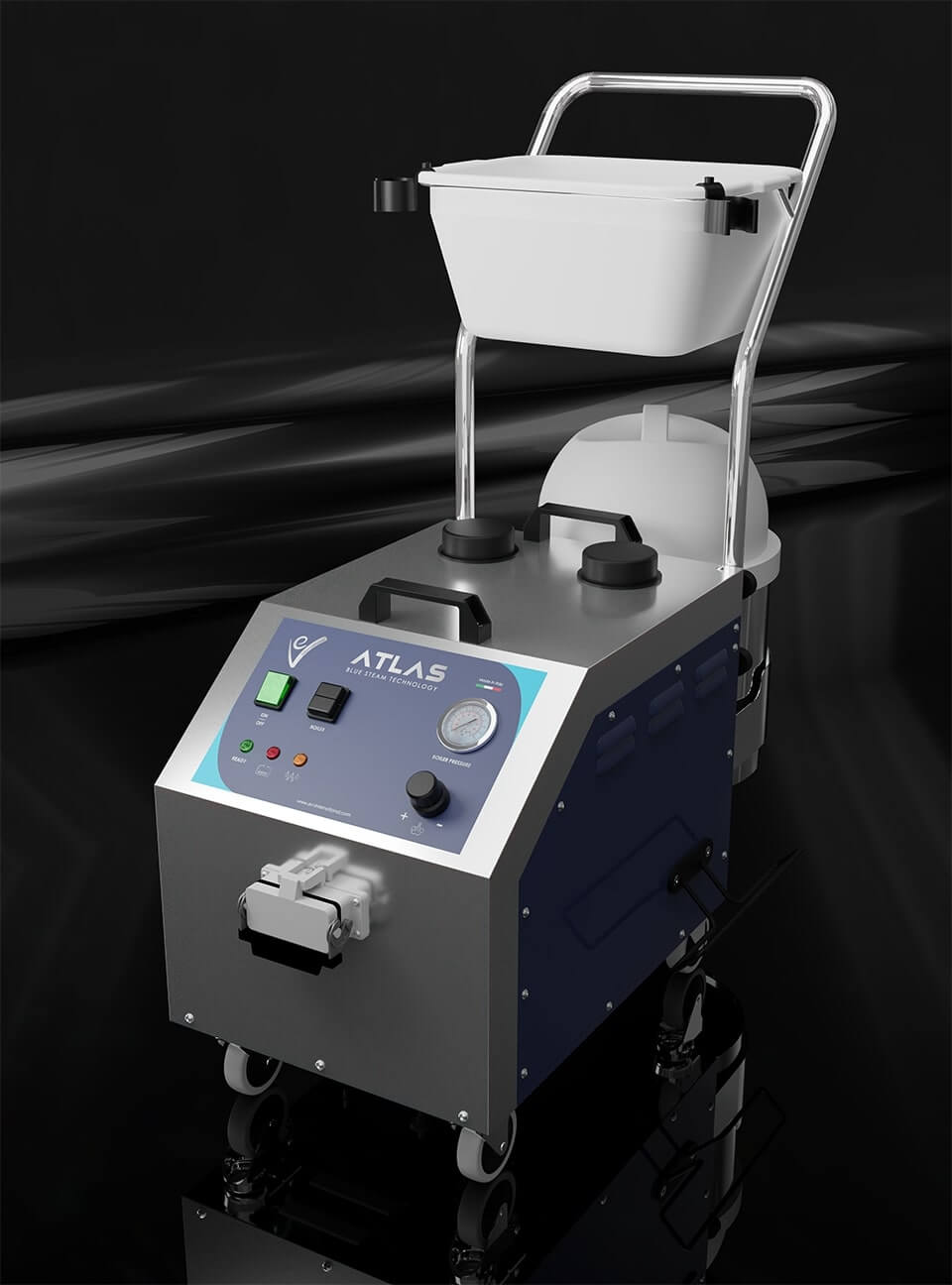

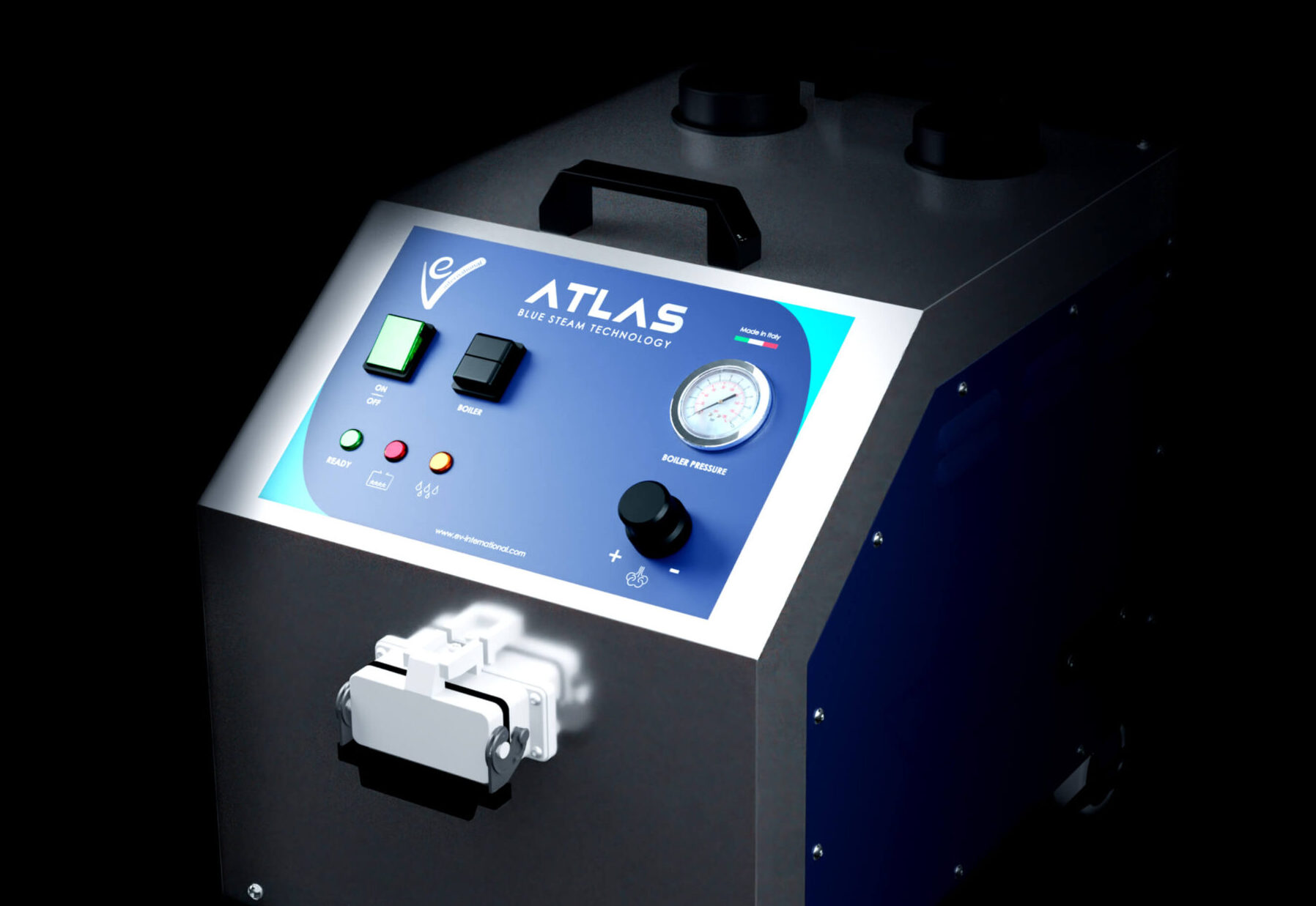

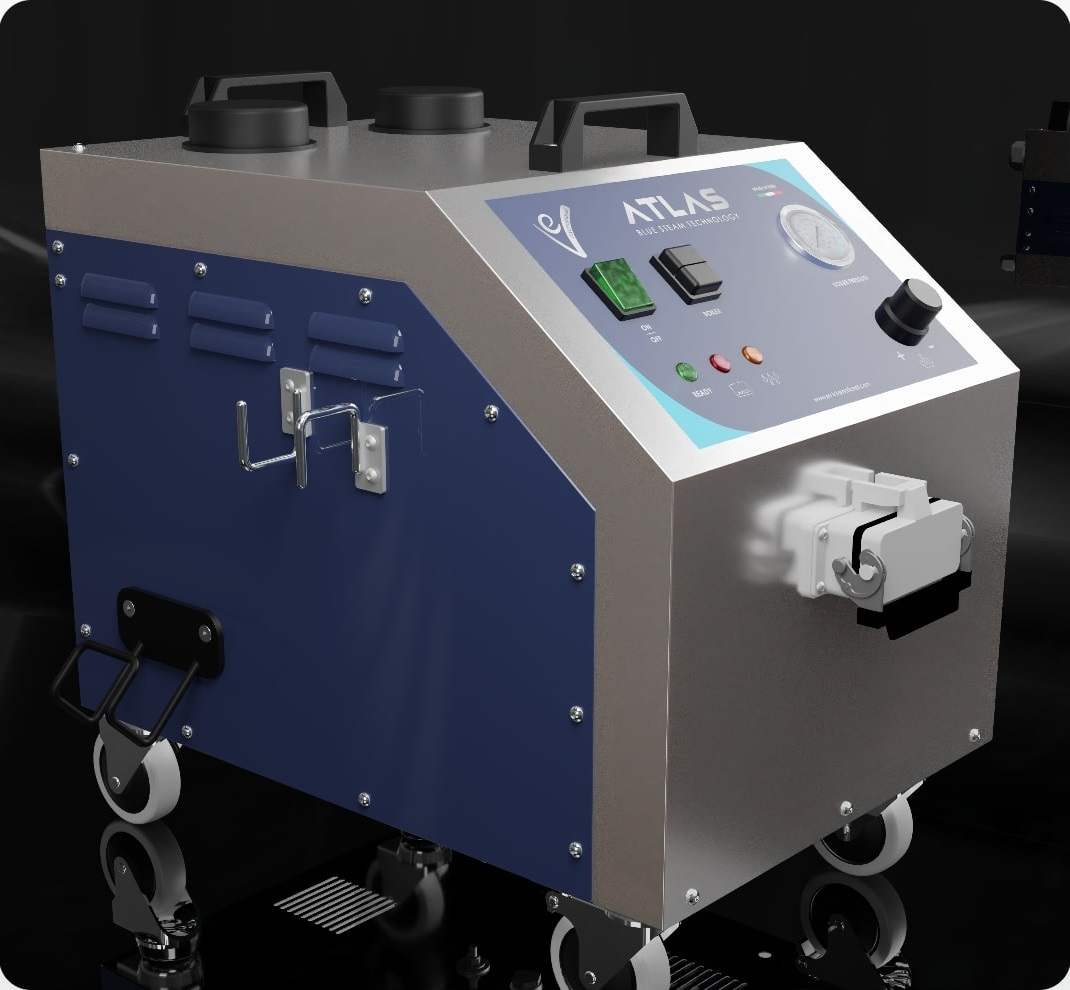

EV ATLAS is a powerful steam generator designed to tackle heavy dirt, grease and grime in industrial environments. This innovative appliance combines the power of steam cleaning and vacuuming technology, thus, reducing the time for sanitation and disinfection by more than half.
Technical data
| Feature | Unit | Specification |
|---|---|---|
| Power supply | V – Hz | 220 – 50 / 60 |
| Total power | kW | 3.2 |
| Working pressure | bar / Psi | 10 / 145 |
| Boiler power | kW | 3.2 |
| Steam production | g / oz per min | 140 / 4.95 |
| Power absorption | A | 13 / 220 V |
| Start up time | min | 10 |
| Boiler temperature | °C / °F | 190 / 375 |
| Boiler capacity | liter / gallon | 4 / 1.06 |
| Boiler material | Type | AISI 304 |
| Steam output regulation | Electronic | Manual steam control |
| Water ejection | Yes/No | Yes |
| Continuous use | Detergent ejection | Yes |
| Water refill tank | liter / gallon | 5 / 1.32 |
| Detergent refill tank | liter / gallon | 5 / 1.32 |
| Body material | Type | INOX AISI 304 |
| Weight net | kg / lbs | 22 / 88 |
| Dimensions | L x W x H | 53 x 37 x 51 |
| Power cable length | m / ft | 5 / 16.4 |
| Steam hose length | m / ft | 5 / 16.4 |
